Mushroom/Bell Jet

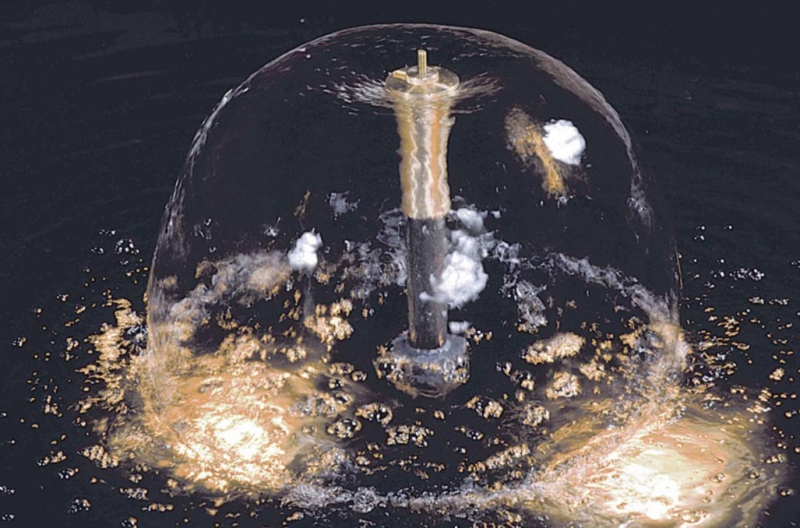

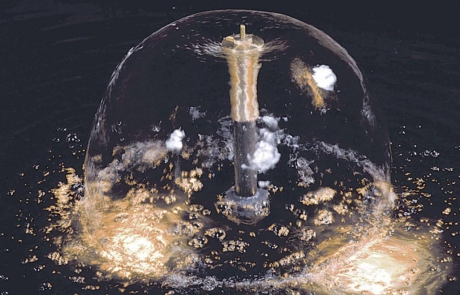

A clear sheet of pulsating water capable of assuming dual forms via its adjustable top cone. This effect can transform into a mushroom (flatter on top and wider spread) or a bell shape (clearer, rounder top which falls straight), and ideal for small areas free of wind.

Function
A clear sheet of pulsating water capable of assuming dual forms. The effect can be changed from mushroom to bell by simply reversing the top cone. Quiet and splash-free. Ideal for small areas which are free of wind.
Not water level dependent.

Specification

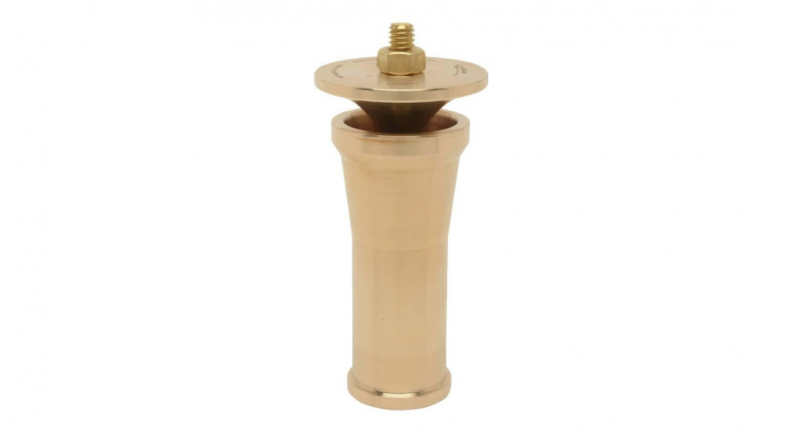

Construction shall be machined cast bronze and brass, the top cone is reversible.

Options

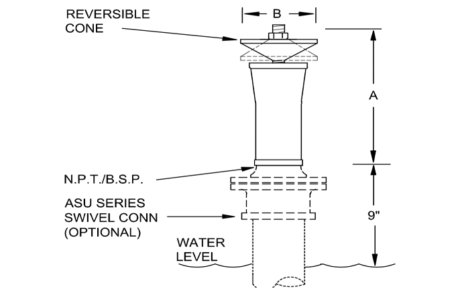

ASU Series – 15º swivel connection for directional alignment of the nozzle

Notes
For optimum effect

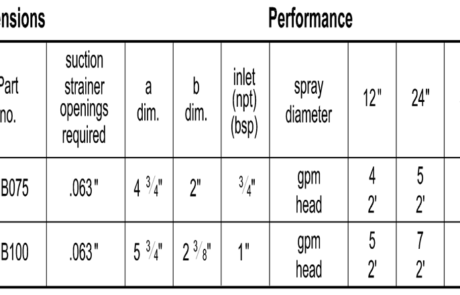

  1. Requires fine screening at the pump (see performance chart)
  2. Requires non-turbulent water supply.

All of the products on this page are made of the highest quality materials.

Specifications:

  • Quiet and splash-free
  • Optional alignment swivel available (ASU)
  • Made of machined cast bronze and brass
  • Not water level dependent
Mushroom Bell Jet Cutsheet
